SPECIFICATIONS

Accessory Type: USB To DC Cable

Battery: 3.7V lithium battery power supply and charging

Battery Included: No

Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh

Brand Name: Heltec Automation

Compatible With: Wireless Tracker

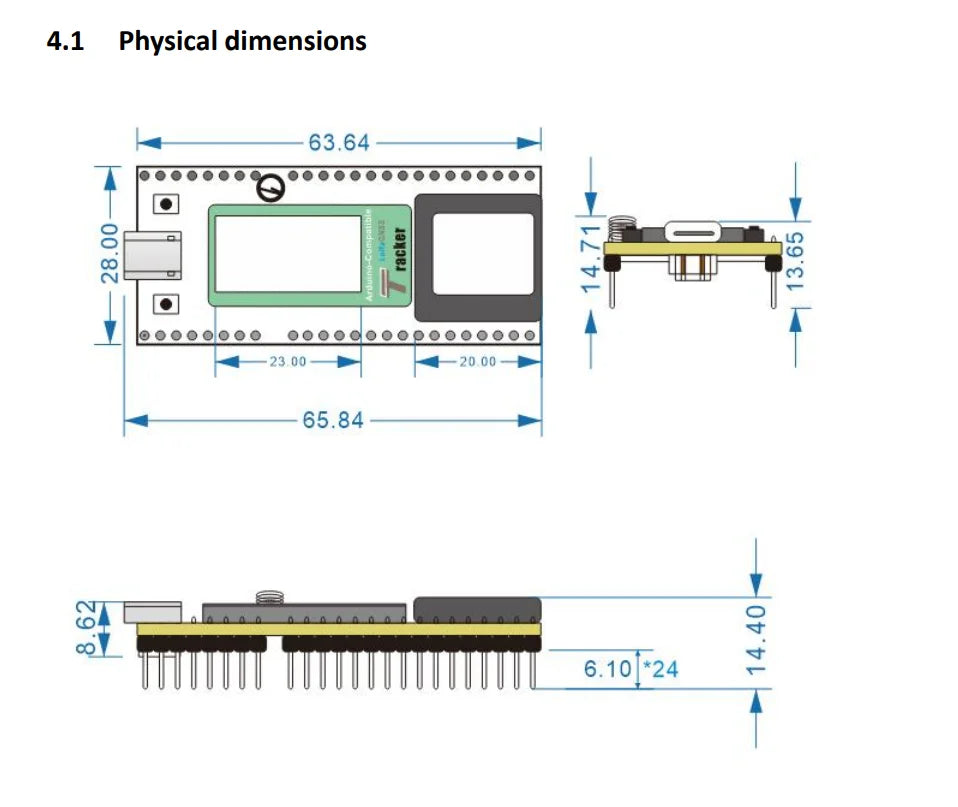

Dimensions: 65.48*28.06*13.52mm

Frequency: 470-510MHz, 863-923MHz

GNSS Chipset: UC6580

Heltec Dev-board: Wireless Tracker GNSS LoRa BLE

High-concerned chemical: None

LoRa Chipset: SX1262

Master Chip: ESP32-S3FN8

Max TX Power: 21±1dBm

Operating Temperature: -20-70℃

Origin: Mainland China

Receiving Sensitivity: -134dBm

Support: Meshtastic

Typical Application Fields: Internet of Things (IoT)

WiFi: 802.22b/g/n, up to 150Mbps

Why do we need Maker series products?

Summary

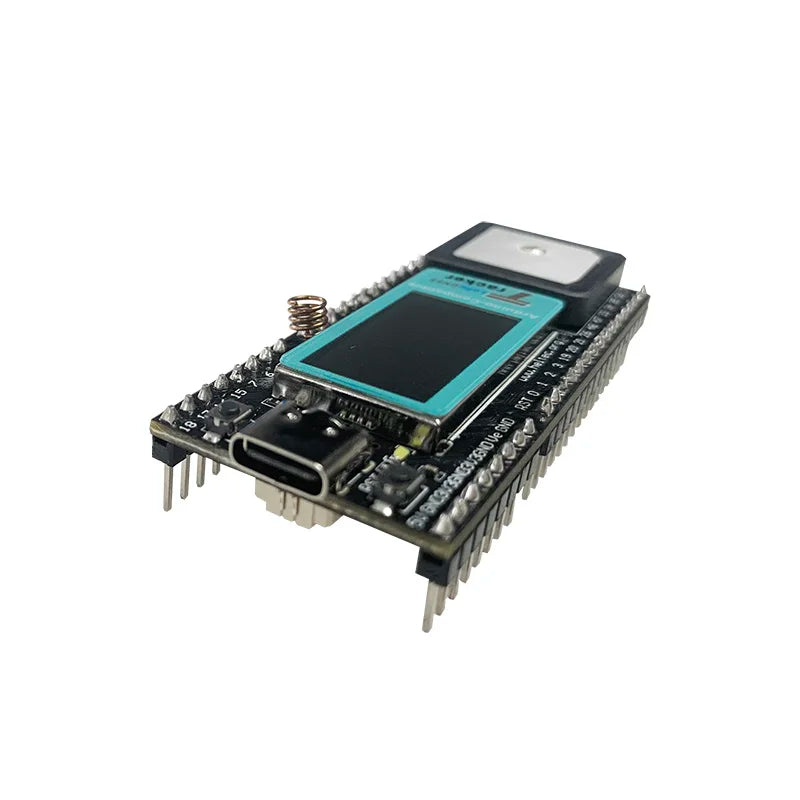

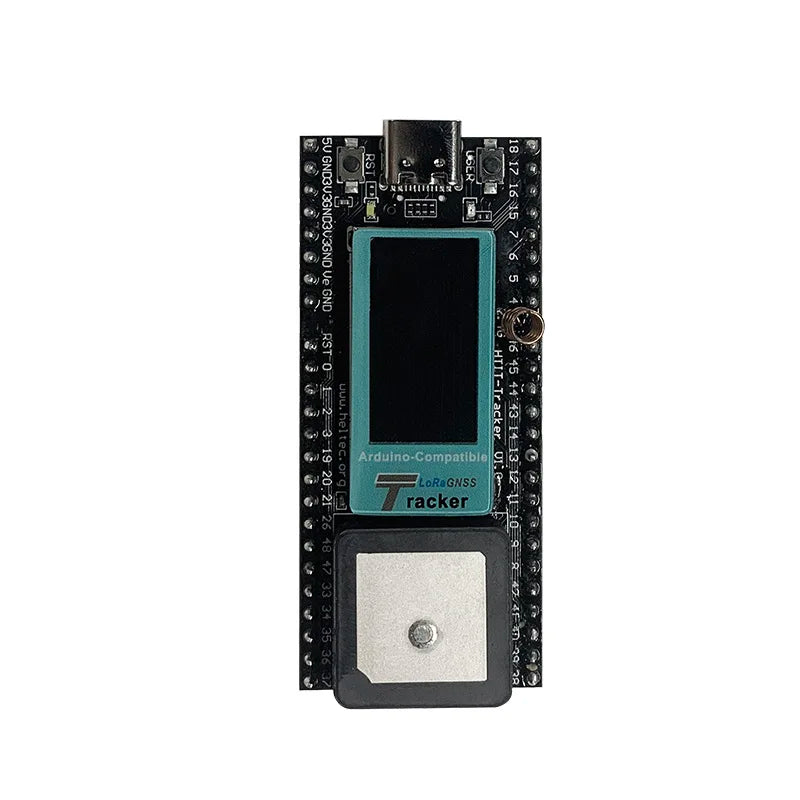

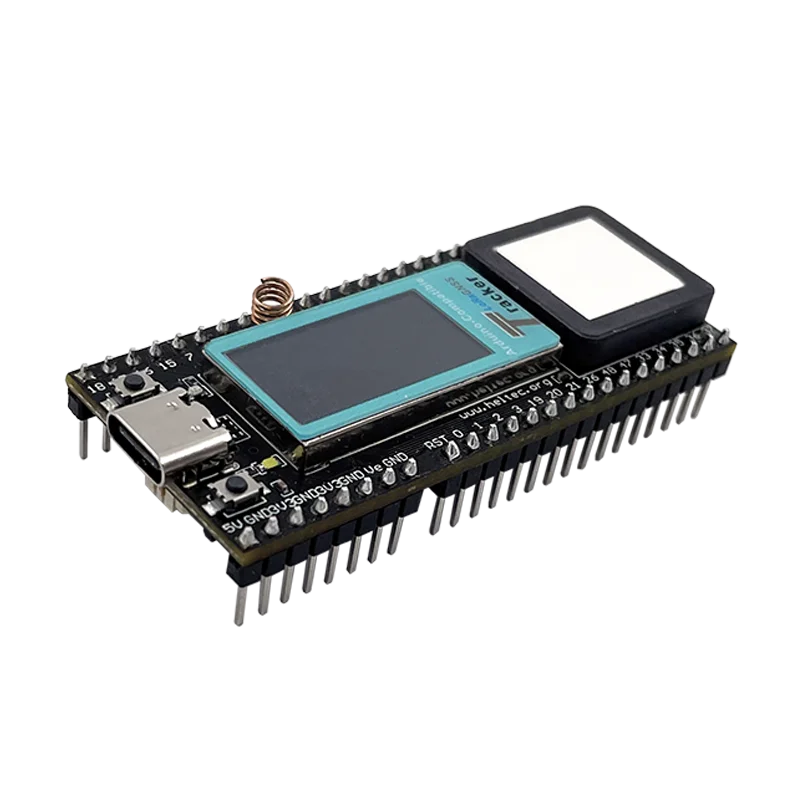

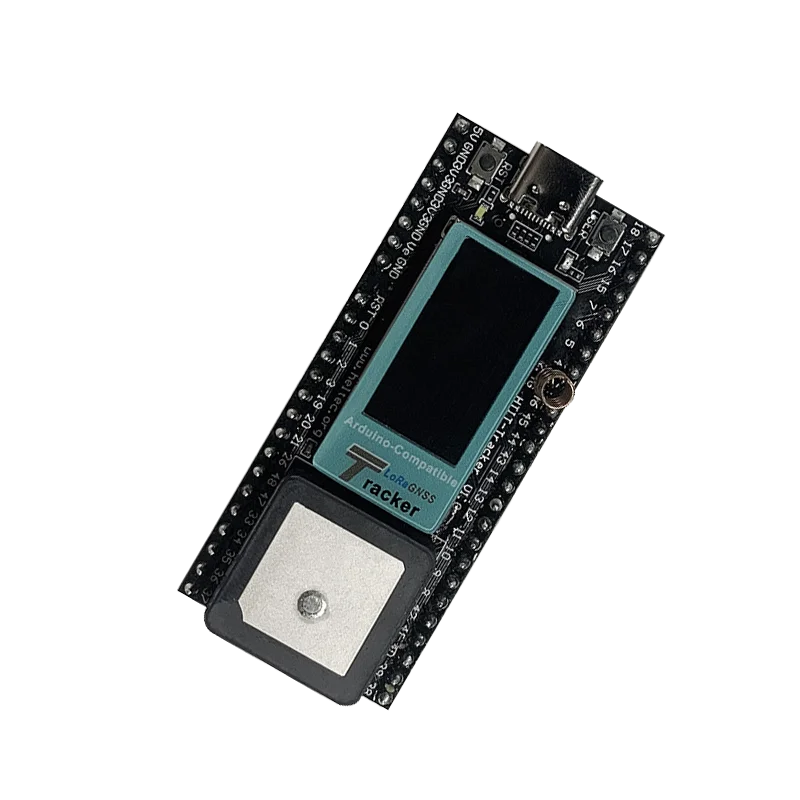

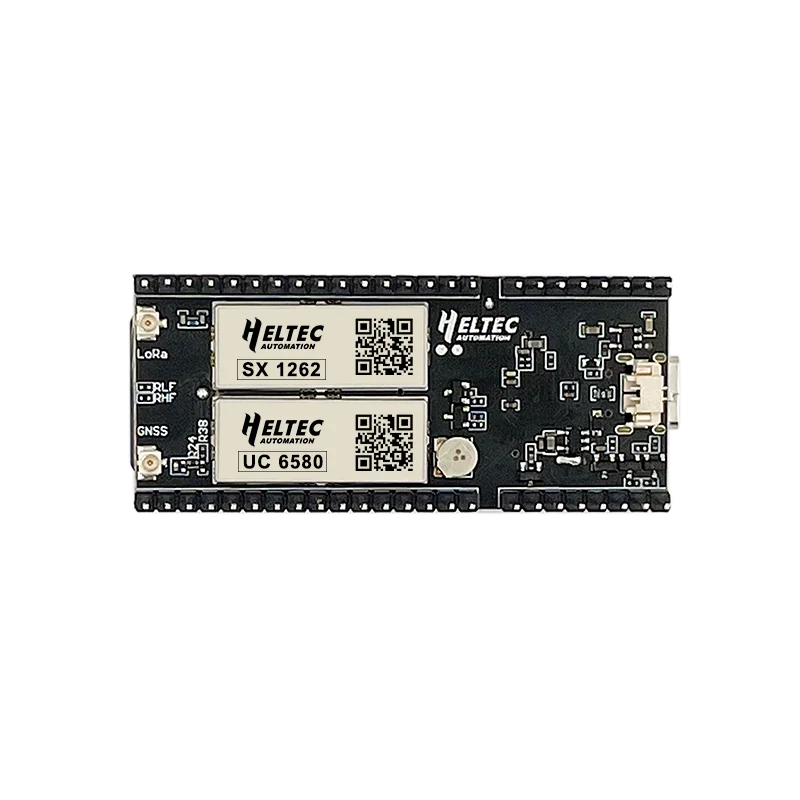

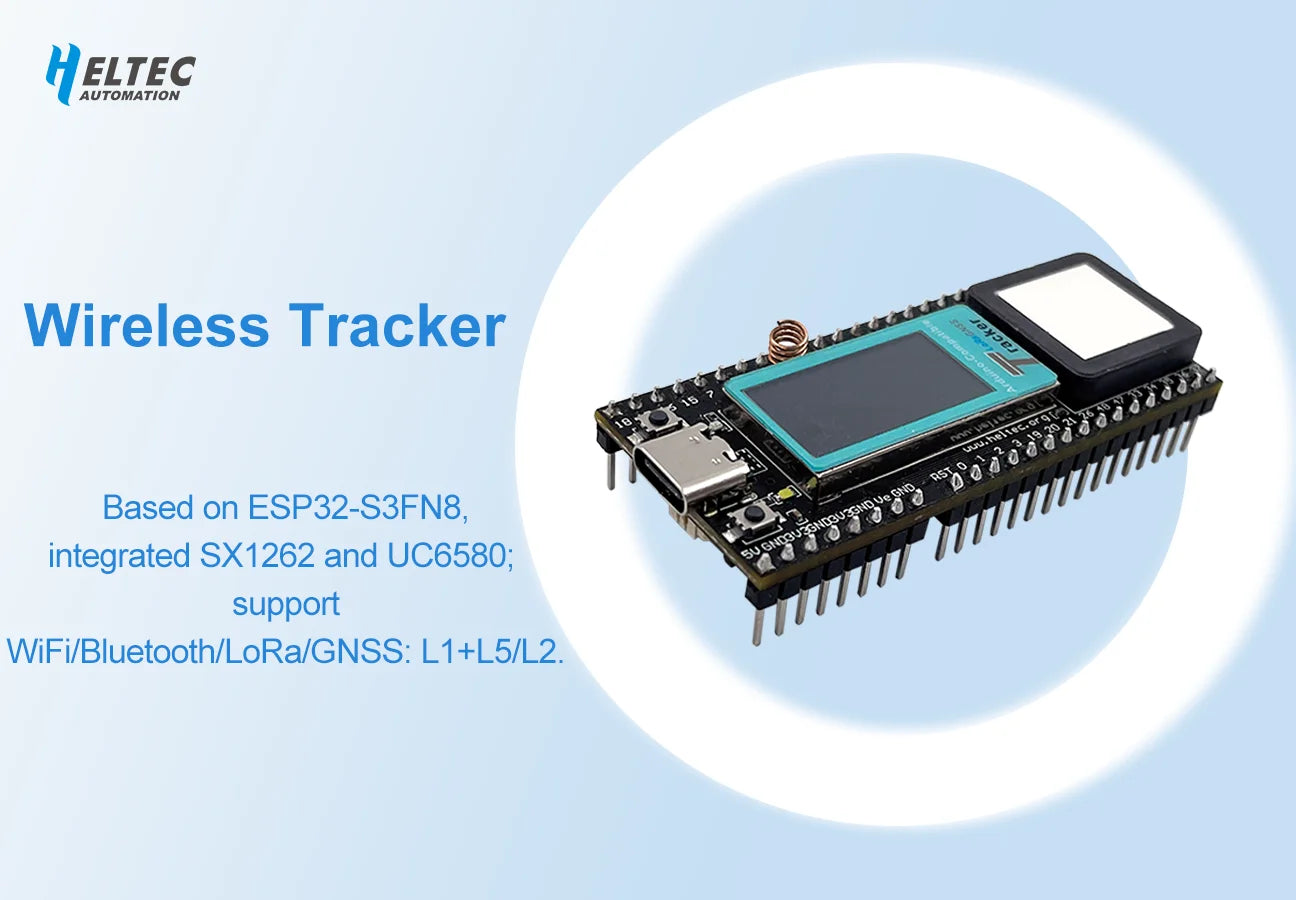

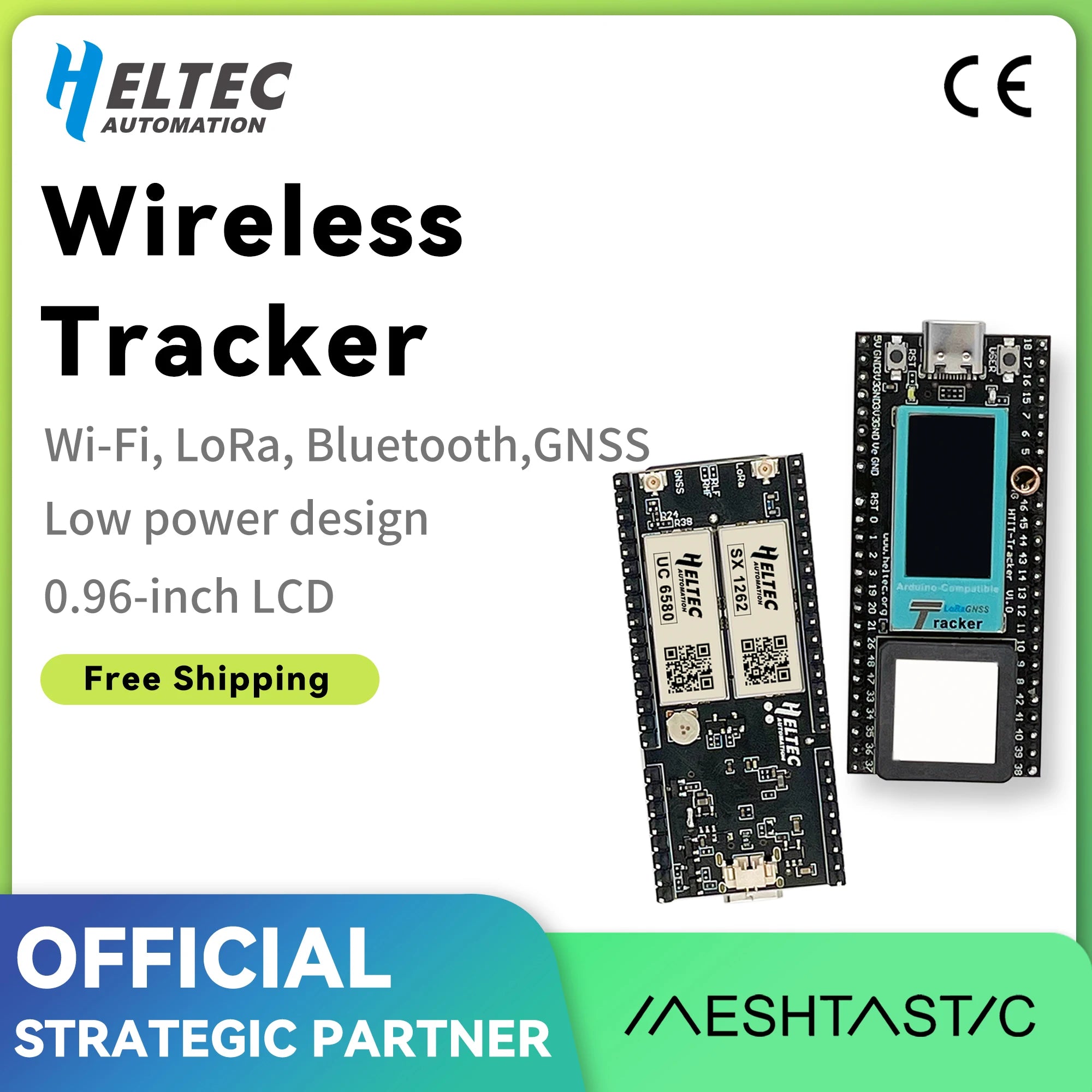

Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa.

Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.

Wireless Tracker supports the following development methods:

Wireless Tracker is compatible with the following open-source projects:

• ESP32 Paxcounter

• Disaster Radio

• Meshtastic

• Tiny GS

• ...

We also provide a standard ESP32 Arduino LoRaWAN library:

• Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

Specifications

Resource

• Heltec ESP32 Arduino Framework(Include ESP32 Arduino LoRaWAN library)

• Heltec LoRaWAN test server based on TTS V3

• user manual document

• Hardware update logs

Packing list

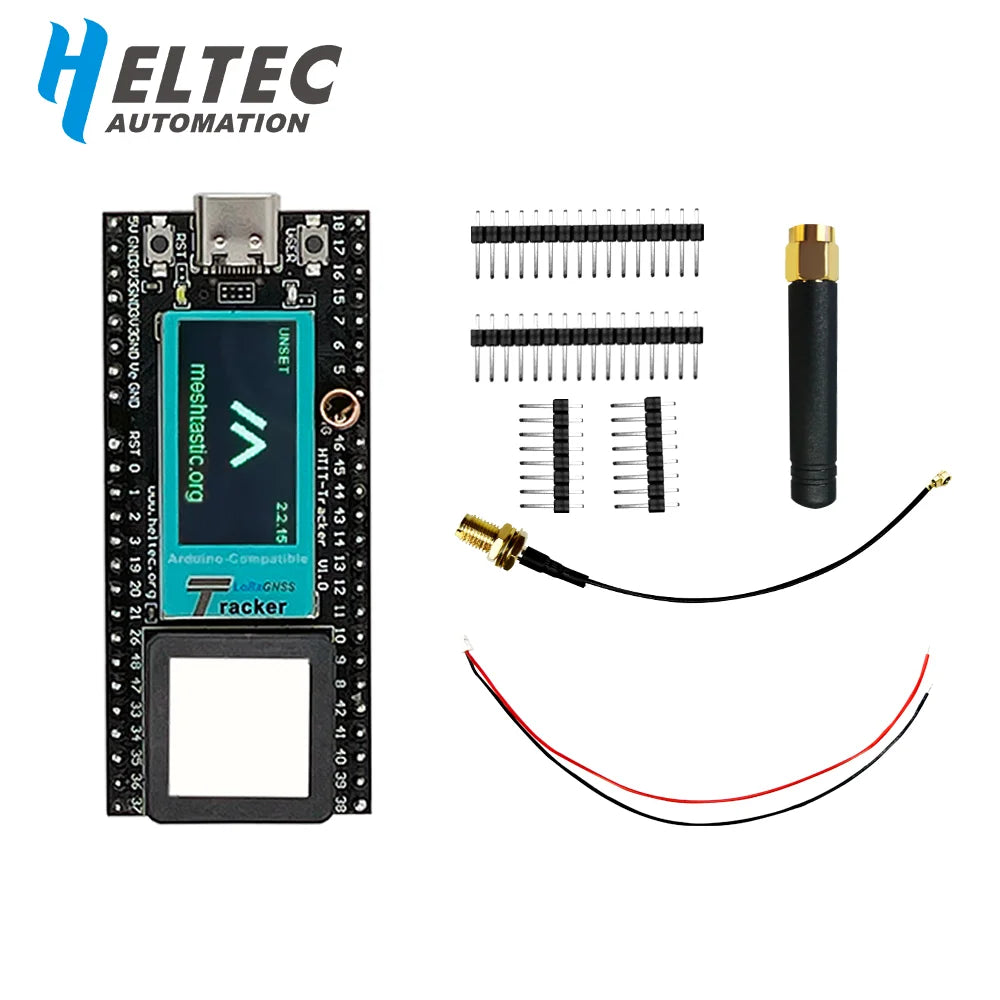

The default packing list without selecting any accessories is as follows:

More info about Heltec products:
